Voortman MO Compact Series Pipe Cutting Machine

VOORTMAN MO COMPACT SERIES
– 400, 600, 800, 900

High-tech functions for round pipes up to a diameter of 900 mm (36″) and up to a pipe weight of 4 metric tons. The MO Compact Series Pipe Cutting Machines provide efficient and versatile 6 axis processing in a compact design that offers high quality plasma cutting, plasma 3D-bevel cutting, oxy-fuel cutting and plasma marking.

• Standardized, compact machines
• Equipped with 6 CNC-controlled axes
• 3D cutting performed with plasma and oxy-fuel
• High-quality, reliable and accurate pipe profiling

• Plasma cutting
• 3D-bevel cutting
• Oxy-fuel cutting
• Plasma marking

Voortman MO Compact Series Pipe Cutting Machine Features and Processes

FEATURES FOR CUTTING

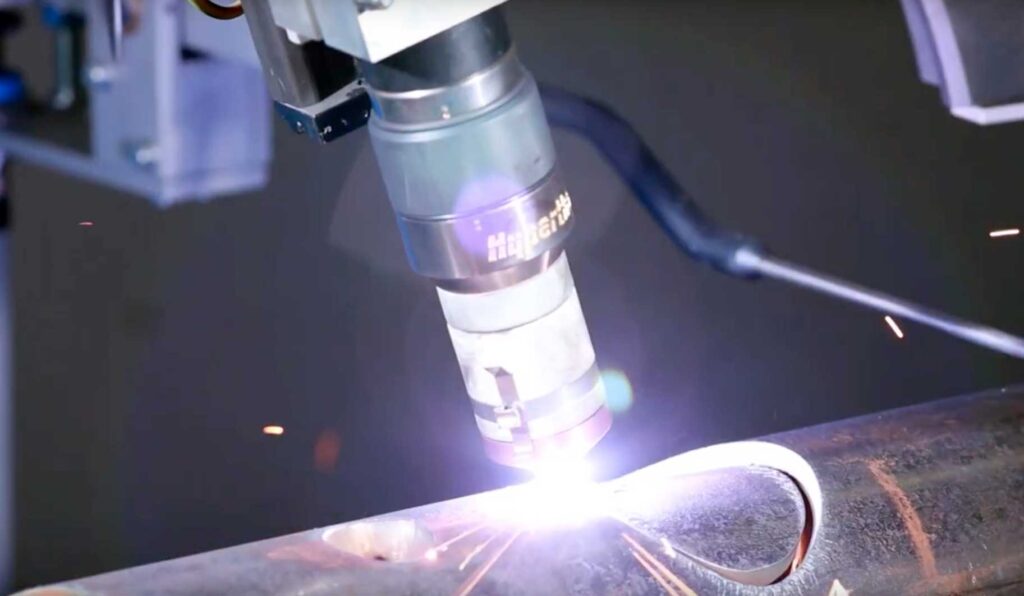

• Torch head
• Electromechanical tracer
• Slide system
• Oxy-fuel cutting package
• Preheating torch
• Plasma cutting

FEATURES & PROCESSES FOR MARKING & PRINTING

• Needle marking system (airscriber)
• Needle printing system
• Label printing
• Plasma marking system
• Inkjet marking and printing system

FEATURES & PROCESSES FOR PIPE CARRIAGE

• Hydraulic pipe carriage with manual scissor-type adjustment
• Chuck height adjustment
• Fixed-height pipe carriage with manual adjustment of rollers
• Manual ball cutter
• Motorized ball cutter
• Hold-down device

Voortman MO Compact Series Specifications

• Machine Weight (lbs): 9920.802 – 13227.74
• Number of CNC axes: 6
• Max. workpiece weight (lbs): 8818.49
• Min. – max. clampable round pipe diameter (inch): 2 – 16 to 2 – 36
• Min. – max. cuttable workpiece length (inch): 11 13/16 – 472 7/16
• Min. – max. wall thickness for cutting with oxy-fuel /plasma (inch): 3/16 – 2 3/8 / 3/16 – 1 3/8
• Max. torch angle (degrees): +/- 60 / 45
