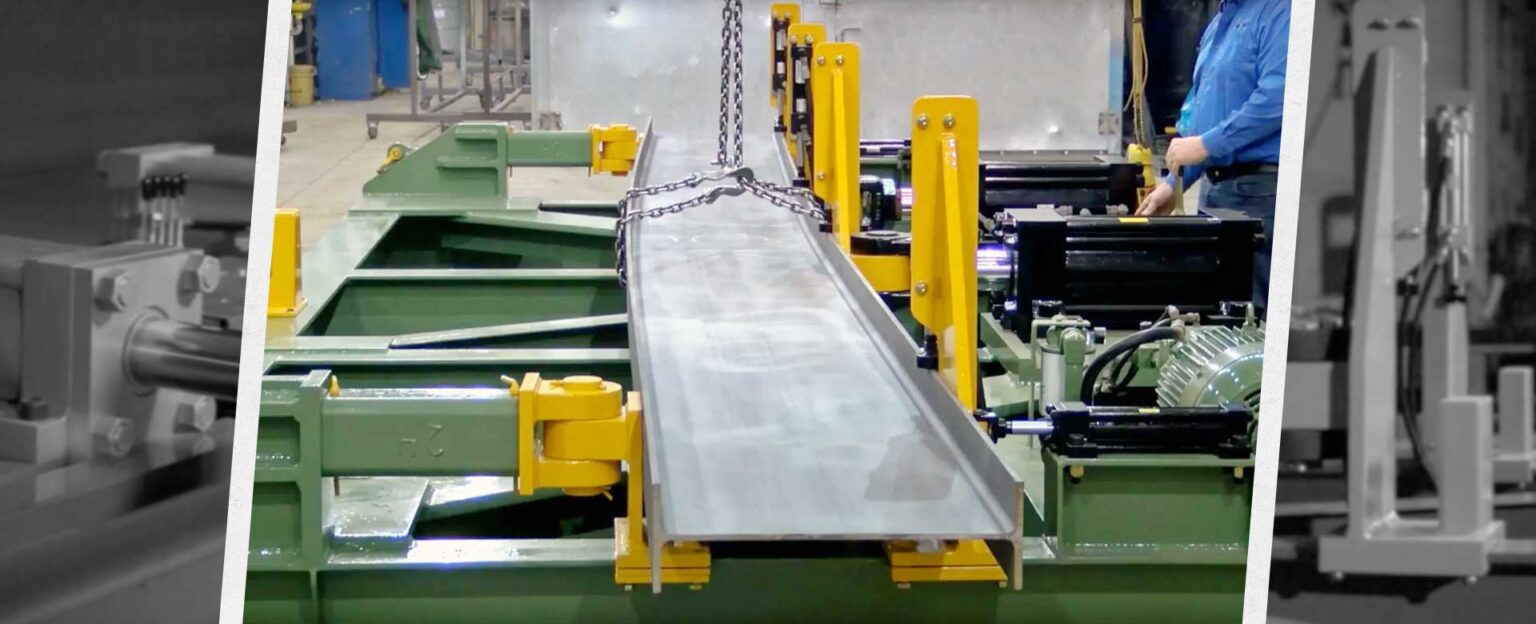

Bay-lynx Beam Cambering Machines

Precisely customize the camber of your steel beams without using heat.

The BC Series is specially designed to induce permanent camber into wide flange, channel, and tubular beams. Its electric motor powered hydraulic system can deliver up to 530 tons of force to bend steel beams as large as W40x280 (Grade 36) without heat.

Adjustable glides and supports are provided to readily accept depths from 6” through 36” and flange widths up to 18”. The machines are designed for ease and speed of operation and are totally self contained so that they may be moved and stored when not in use. All mechanical and hydraulic components are standard items, and parts service are readily available nationwide.

These units are provided complete with pressure relief valve, return line filter, sump strainer, glycerin filled pressure gauge, reservoir sight glass, breather cap, control valves, and on/off switch.

Standard Features

• Easy to use manual hydraulic controls.
• High pressure rated large bore cambering cylinders.
• Electrical power unit.
• Lifting lugs for easily re-positioning or moving.
• CMS01 measuring sensor.

Bay-lynx BC-600 Beam Cambering Machine

Total Press Capacity: 260 Tons @ 5000 PSI

Features

• Total Press Capacity – 260 Tons @ 5000 PSI.
• Cambers – A36 up to W30x148.
• Overall Dimensions – 8’11″W X 23’6″L X 3’0″H.
• Weight – 10,000lbs (Approx.).
• Motor – 20 HP 230/460V.
• Main Cylinders – 8″ dia. x 12″ stroke.
• Clamping Cylinders – 2″ dia. X 9″ stroke.

Bay-lynx BC-900 Beam Cambering Machine

Total Press Capacity: 333 Tons @ 4000 PSI

Features

• Total Press Capacity – 333 Tons @ 4000 PSI.
• Cambers – A36 up to W36x210 | V50 up to W36x150.
• Overall Dimensions – 9’11″W X 23’6″L X 3’4″H.
• Weight – 16,000lbs (Approx.).
• Motor – 25 HP 230/460v.
• Main Cylinders – 10″ dia. x 12″ stroke.
• Clamping Cylinders – 2 1/2″ dia. X 9″ stroke.

Bay-lynx BC-1200 Beam Cambering Machine

Total Press Capacity: 472 Tons @ 3600 PSI

Features

• Total Press Capacity – 472 Tons @ 3600 PSI.
• Cambers – A36 up to W36x280 | V50 up to W33x221.
• Overall Dimensions – 9’11″W X 23’6″L X 3’10″H.
• Weight – 17,000lbs (Approx.).
• Motor – 25 HP 230/460v.
• Main Cylinders – 12″ dia. x 12″ stroke.
• Clamping Cylinders – 3 1/4″ dia. X 9″ stroke.

Bay-lynx BC-1600 Beam Cambering Machine

Total Press Capacity: 530 Tons @ 4000 PSI

Features

• Total Press Capacity – 530 Tons @ 4000 PSI.
• Cambers – A36 up to W40x230 | V50 up to W36x210.
• Overall Dimensions – 9’11″W X 23’6″L X 3’10″H.
• Weight – 17,000lbs (Approx.).
• Motor – 25 HP 230/460v.
• Main Cylinders – 12″ dia. x 12″ stroke.
• Clamping Cylinders – 3 1/4″ dia. X 9″ stroke.
